QTek s110: plus 10 points

Summer. Manufacturers of handheld computers are people too and also love to relax, so the summer season, characterized by a lull in the market. Only in the fall luminaries PDA structure will actively update their lineups, and while it is not surprising that any news outlet or a fresh typewriter restyling old is seen with high enthusiasm. That's restyled today and will be discussed. Not so long ago the company HTC, the undisputed leader in the market of communicators based Pocket PC, has released quite an interesting model. Platform, which was taken as its basis, was named HTC Magician, to us, she is best known for example, devices such as Qtek s100, i-Mate Jam or T-Mobile Compact. Machine has won the attention of a huge number of buyers, as it became a pioneer in terms of a combination of compactness with possibilities of full-fledged Pocket PC. And now, months later, came an "extended" version of the same device, replacing color and adding in features. Meet - Qtek s110.
QTek s110: plus 10 points
In fact, we are not talking about a new device. Our today's hero is only slightly different from "basic" model, Qtek s100. However, these are the 10 points, for which you should consider purchasing it. So in this review we will compare the new product to its predecessor.
    Specifications:
  • Operating System: Microsoft Windows Mobile 2003 Second Edition
  • Processor: Intel XScale PXA272 416 MHz
  • Memory: 128 MB RAM (121 MB user available) 64 MB Flash ROM (7 MB available)
  • Screen: 2.8 "(72 mm) transflective TFT, 240x320, 65536 colors
  • Memory Expansion: SD / Multimedia Card / SDIO
  • Wireless interfaces: IrDA, Bluetooth, GSM 900/1800/1900, GPRS Class 8 / 10
  • Battery: Li-Pol, 1200 mAh
  • Audio: microphone, speaker, 2.5-mm stereo headphone jack
  • Dimensions and weight: 108 x 58 x 18 mm and 150 g.
Compare Ad Qtek s100 Qtek s110 and can use the "Compare" in the "Catalogue of the CCP."

Supplied

Like the previous model, Qtek s100 completed all that is needed to the user. Unfortunately, the bundled cradle is again absent, despite the fact that many users complained about the s100 it.
QTek s110: plus 10 points
    So, in the box are:
  • charger
  • USB-cable for synchronization with PC
  • pouch on his belt
  • Stereo Headset
  • spare stylus
  • User guide
  • software.
Changes in terms of availability, as we have seen, no.

Appearance

The main (and only) difference in terms of design the new model from the old - the body color. Qtek s100 was made in the traditional HTC colors: black plastic casing with silver front and back panel. Now the company changed the color of dark gray metallic.
QTek s110: plus 10 points
A small, seemingly cosmetic change dramatically transformed the communicator. Qtek s110 looks very stylish and relevant. Thanks to the dark color front panel gives the impression that the CCP has decreased in size, although of course it is not so, the case remained the same.
QTek s110: plus 10 points
Dimensions and layout of the controls have not changed, so it is especially to dwell on their description will not only enumerate them.Under the screen is a navigation joystick in the frame of the four buttons ("Call", "End Call", "Contact" and "Calendar"). Button "Call" and "End Call" denotes the corresponding light (green and red, respectively). Above the display is placed in speaker, combined with multi-color (yellow-green-blue) LED. The indicator is responsible for charging the battery, reminders and work Bluetooth.
QTek s110: plus 10 points
At the top end is a connector for memory card SD / MultiMedia Card. It also includes a strap hole. At the junction of the upper end to the right is a silo.
QTek s110: plus 10 points
On the right side is a button power PDA and an infrared port.
QTek s110: plus 10 points
On the left side are buttons control the recorder and camera, as well as the slider control adjusts the volume.
QTek s110: plus 10 points
Bottom-placed connectors for cable sync and headset.
QTek s110: plus 10 points
Space of the rear of the device is shared between the camera, self-portrait mirror and a connector for an external phone antenna. There is also a battery compartment with "sliders" for the SIM-card.
QTek s110: plus 10 points
So, we have all the same Qtek s100, but in new colors. It is not that revolutionary changes, but the new color of the case, of course, adds charm to this pretty well-known communicator. Especially because in the world Pocket PC PDA - it's the first machine, which appeared beyond the traditional black and silver palette. Now look at what the new PDA inside.

Processor, memory, speed

No difference in the speed we were not expecting. In the Qtek s110 installed the same "rock" as in "cotom" - Intel PXA 272 c clock frequency of 416 MHz. But the amount of memory - this is the second difference between the new device from the previous one - it increased to 128 MB. Given that the main memory is never enough, the course is certainly true. Because of differences in the hardware there is little, then the results of testing using SPB Benchmark surprised no one. All differences between the s100 and s110 are within the measurement error.
QTek s110: plus 10 points
QTek s110: plus 10 points
QTek s110: plus 10 points
Detailed results - below.
QTek s110: plus 10 points
Testing the video using the playback Betaplayer 0.095 showed the same results. Differences between typewriters do not.
QTek s110: plus 10 points

Screen

The standard for today transflektiv, exactly the same as in the previous model. The size of the matrix - 2.8 "(72 mm). Lights - bright and even has 10 levels of brightness.
QTek s110: plus 10 points
Viewing angles - the standard for today's devices: 30 degrees vertical and about 45 - horizontally. Next image contrast rapidly decreases, but the colors are not inverted. The effect of the "yellow screen" is not observed.

Battery

The battery is again the same - lithium polymer, capacity of 1200 mAh.
    Testing time work was carried out with a full battery charge before the Main battery low warning in four different modes:
  1. Stress test. GSM-module and Bluetooth are included, brightness and volume maximized PDA lost in a series of "hard" video. Opening hours - 3 hours 10 minutes.
  2. Normal operation. An attempt to simulate some "average" conditions of the CCP. GSM-Module has been enabled, Bluetooth - off. Speaker volume was set at half the maximum brightness - in the first division of the minimum. PDA lost in a cycle of regular video. Opening hours - 3 hours 50 minutes.
  3. Reading e-books. GSM-module and Bluetooth - turned off lights - in the first division of the minimum, the reading program was carried Haali Reader mode avtoskrolla. Hours - 9 hours 50 minutes.
  4. Play audio. GSM-module, Bluetooth and the screen - are off. Play was performed on a set of headphones attached. Used the program GS Player, files with a bitrate of 192-256 kb / c were played from a memory card. Hours - 9 hours 30 min.
In fact, the results are slightly lower than the s100. Perhaps this is due to double the amount of memory, which consumes more energy, but most likely it's just a measurement error when working with different instances of PDA.
QTek s110: plus 10 points

Sound

Sound - pretty standard for Pocket PC: without extraneous noise and quite clean. Built-in speaker volume is still not enough for comfortable conversation on the phone, so I have to use a headset. The headset is the same as that of the s100, with a volume control button and answer the call. Hardware equalizer again absent.In general, the quality of the sound path from the previous model has not changed. Dictaphone still good: clearly writes the word companion in the premises of the average noise at a distance of up to 2-2,5 m. The automatic level control microphone can be turned off.
QTek s110: plus 10 points

Wireless interfaces

In this regard, as no changes, therefore restrict transfer capacity of wireless communications.

GSM / GPRS

Three-band GSM - 900/1800/1900 MHz. GPRS two classes: Class 8 (4 slots per reception, 1 transfer) and Class 10 (3 reception, 2 transfer).
QTek s110: plus 10 points
QTek s110: plus 10 points

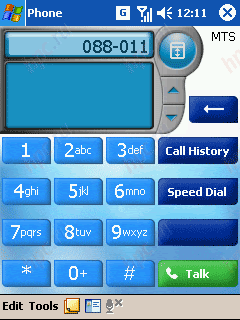

All telephone functions are performed by the staff application Windows Mobile Phone.
QTek s110: plus 10 points
    It supports all the standard features of GSM-networks:
  • call barring
  • waiting
  • call forwarding
  • AON
  • Voicemail
  • index of the network and broadcast messages.
QTek s110: plus 10 points
QTek s110: plus 10 points
QTek s110: plus 10 points
QTek s110: plus 10 points
QTek s110: plus 10 points
QTek s110: plus 10 points

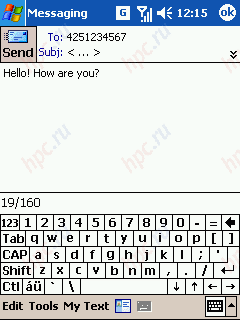

Receiving and sending SMS messages are carried through a standard application Messaging.
QTek s110: plus 10 points
QTek s110: plus 10 points
QTek s110: plus 10 points
To work with MMS-messages contains a special editor.
QTek s110: plus 10 points
QTek s110: plus 10 points
QTek s110: plus 10 points
To quickly identify the caller has a program Caller ID.
QTek s110: plus 10 points
QTek s110: plus 10 points
QTek s110: plus 10 points
QTek s110: plus 10 points
To import contacts from the card provided SIM manager.
QTek s110: plus 10 points
QTek s110: plus 10 points
QTek s110: plus 10 points

Bluetooth

Unfortunately, Qtek and did not set a new PDA Bluetooth drivers from Broadcom, have already become standard. Managing Bluetooth-connection is made by regular means the OS.
    Connection is available the following services: ActiveSync
  • COM-ports (inbound and outbound, the numbers are not configurable)
  • PIM Exchange (activated automatically, it is possible to configure authentication)
  • Audio Gateway (automatically activated)
QTek s110: plus 10 points
QTek s110: plus 10 points
QTek s110: plus 10 points
QTek s110: plus 10 points

Infrared

Port - a standard, not reinforced, so that the use Qtek s110 as a remote will not work.

Luggage

Chamber of Qtek s110 - 1,3 Megapixel, inherited from its predecessor.
QTek s110: plus 10 points
    User has access to the following:
  • format: photos, videos, photos for MMS, Picture for Caller ID, photos for desktop theme
  • file types: JPEG or BMP (for photos), MPEG-4 or Motion JPEG (video)
  • Resolution: Photo - 960x1280, 480x640, 240x320 and 120x160 for video - 240x320, 144h176 and 96h128
  • White Balance: Auto, Day, incandescent or fluorescent light, night
  • color effects: black and white, sepia, cool, and the negative.
Typical examples of photography - below.
QTek s110: plus 10 points
QTek s110: plus 10 points

Software

On the PDA operating system Microsoft Windows Mobile 2003 SE Phone edition. Among the built-in applications are familiar to many: Calendar, Contacts, Tasks, Notes; Pocket Word, Pocket Excel; Pocket Internet Explorer, Messaging; Phone; Voice Recorder; Windows Media Player 10 (By the way, unconventionally, usually put 9 version); File Explorer; Pictures; Calculator; Solitaire, Jawbreaker; Terminal Services Client, MSN Messenger. Additional software: - Program to backup user data xBackup.
QTek s110: plus 10 points
- Utility Permanent Save to automatically save user data in case of a complete battery discharge.
QTek s110: plus 10 points
- Program Album for viewing captured images and video.
QTek s110: plus 10 points
- Utility promotra PDF-file - ClearVue PDF ...
QTek s110: plus 10 points
QTek s110: plus 10 points
... And presentations PowerPoint - ClearVue PPT
QTek s110: plus 10 points
QTek s110: plus 10 points
- Utility for Qtek s100 as GPRS-modem connection for USB, Bluetooth or infrared port. She encloses a list of additional software.
QTek s110: plus 10 points

Conclusions

Naturally, Qtek s110 does not claim the title of a radically new model. In fact the company had restyled body and increased the amount of memory twice - here, in fact, everything changes.
QTek s110: plus 10 points
However, it must be borne in mind that the difference in cost Qtek s100 and s110 - is minimal (at the level of variation in prices in different stores), so those who are thinking about purchasing the device from the family of HTC Magician, it makes sense to pay close attention to this very novelty as the benefits of the new device before the previous version are obvious. Qtek s110 now available in the stores' computer in the palm at a price of $ 620. As announced in the news, deliveries will begin in early September. The authors, translation:

Eugene Bundina
